Product introduction

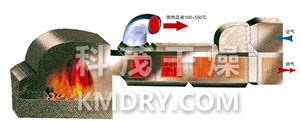

The drier is equipped with machanical line eject coal fuel, and is adopted. The heat exchanger can be choised in high-temperature palte, pipe and hot pipe. Its temperature of outlet is high, and heat factor is high, and the temperature of c leaning hot a ir is from 100 ℃ to 450 ℃. The technical parameters of drier is reached to advanced level in home.The drier is widly used for heating, drying, and hot shapping in chemical industry,foodstuff, mineral, building industry and so on.
Material to be dried
◎Chemical indust r
◎rain processing
◎oodstu
◎uild
◎ood processin g ir condition
◎griculture e tile printing and d eing
◎r or produce damp removing and dr ing dr ing ood wood
◎dr ing ibre plate and compound plate dr ing
◎ot air sevice
Technical Parameter
| Type |
Heat of output
(104kcal/h) |
capacity of air out |
temp.of output
(oC) |
coal consume
(kg/h) |
fan type |
| GMF100 |
100 |
decided by output temperature |
100-450 |
260-280 |
Y5-47NO5 7.5KW |
| GMF120 |
120 |
100-450 |
390-420 |
Y5-47NO5 7.5KW |
| GMF180 |
180 |
100-450 |
520-560 |
Y5-47NO6 15KW |
| GMF240 |
240 |
100-450 |
650-700 |
Y5-47NO6 18.5KW |
| GMF300 |
300 |
100-450 |
780-800 |
Y5-47NO8 22KW |
| GMF360 |
360 |
100-450 |
970-980 |
Y5-47NO8 30KW |
| GMF420 |
420 |
100-450 |
1040-1120 |
Y5-47NO8 30KW |
| GMF480 |
480 |
100-450 |
1300-1400 |
Y5-47NO9 45KW |
| GMF600 |
600 |
100-450 |
1560-1680 |
Y5-47NO10 55KW |
| GMF720 |
720 |
100-450 |
1750-200 |
Y5-47NO10 55KW |
| GMF780 |
780 |
100-450 |
1890-2180 |
Y5-47NO10 75KW |
| GMF960 |
960 |
100-450 |
2320-2700 |
Y5-47NO12 75KW |
